Every home settles. Most foundation cracks are not structural problems. They are the natural result of concrete curing, soil compaction, and a house adjusting to its environment over the first several years of its life.



But Alabama is different. Jefferson, Shelby, Cullman, and Talladega counties sit on expansive red clay soil. This soil swells when it absorbs water and shrinks as it dries. Alabama averages over 54 inches of rainfall per year, which means this expansion and contraction cycle repeats continuously, season after season. That movement puts sustained, uneven pressure on foundations in ways that sandy or loam soils in other regions do not.

What is a harmless shrinkage crack in Kansas is a warning sign in Alabama. This guide explains how to tell the difference.

What Normal Settling Looks Like

Normal settling occurs as a home compresses into the soil beneath it over its first few years. Concrete also shrinks slightly as it cures. Both processes produce cracks, and most of them are benign.

Characteristics of normal settling cracks:

Thin and hairline. Normal cracks are typically less than 1/16 inch wide — narrower than a credit card edge. You can see them but not fit a finger or a coin into them.

Vertical or slightly diagonal. These cracks run up and down or at a slight angle, following the path of least resistance as concrete cures and the house adjusts.

Stable. A settling crack does not grow. If you mark the ends with a pencil and check it three months later, the marks should still align with the crack tips.

Dry. Normal settling cracks do not allow water through. There is no staining, efflorescence, or dampness around them.

Cosmetic. Hairline surface cracks on interior drywall above doors and windows are a classic sign of normal first-year settling. These are in the drywall, not the foundation.

What Alabama's Clay Soil Changes

Alabama red clay is classified as an expansive soil. Its clay mineral content — primarily kaolinite and montmorillonite — absorbs water and expands volumetrically. When rainfall soaks the soil around your foundation, the clay swells and pushes inward against the wall. When dry spells shrink the clay, it pulls away from the foundation, leaving gaps that fill with water during the next rain cycle.

Over years and decades, this repeated load creates conditions that settling alone does not produce. Alabama homes experience:

Higher rates of horizontal cracking, which indicates lateral pressure from soil pushing against the wall rather than simple vertical settling.

Foundation wall displacement, where sections of the wall lean inward over time under sustained soil load.

Floor slab movement, where Alabama's clay soil heaves upward under slabs during wet periods and drops during dry spells, causing uneven or cracked floors.

Differential settling, where one section of the foundation sinks more than another due to inconsistent moisture content in the soil around the perimeter.

This is why foundation cracks in Alabama require a different evaluation standard than the same cracks in other regions.

Foundation Crack Types: What Each One Means

Hairline cracks (less than 1/16 inch wide) Typical cause: concrete curing or normal first-year settling. Monitor for growth. No immediate action needed unless water is entering or the crack grows wider than 1/8 inch.

Vertical cracks (run straight up and down) Typical cause: differential settling or concrete shrinkage. Common in poured concrete walls. Vertical cracks are generally lower severity than horizontal cracks. The concern is whether they are widening over time and whether they allow water entry.

Diagonal or stair-step cracks Typical cause: differential settling in concrete block walls. Stair-step cracks follow the mortar joints between blocks. They indicate one section of the foundation is sinking or shifting more than another. In Alabama clay soil, this is often caused by uneven moisture content around the perimeter - one side of the foundation is wetter than the other.

Horizontal cracks Highest severity. Horizontal cracks in a foundation wall indicate lateral pressure from the soil outside. In Alabama, this is most often hydrostatic pressure from saturated red clay bearing against the wall face. Horizontal cracking means the soil load is exceeding the wall's design capacity. This requires professional evaluation immediately. Left unaddressed, horizontal cracks progress to wall bowing, displacement, and structural failure.

Cracks with displacement (one side higher than the other) Any crack where the two sides are at different heights - not just separated - indicates the foundation is moving in multiple directions. This is a structural signal regardless of crack width.

Cracks wider than 1/4 inch Width alone makes a crack a priority. At 1/4 inch or wider, you can see daylight through many cracks, and water entry during any storm event is likely.

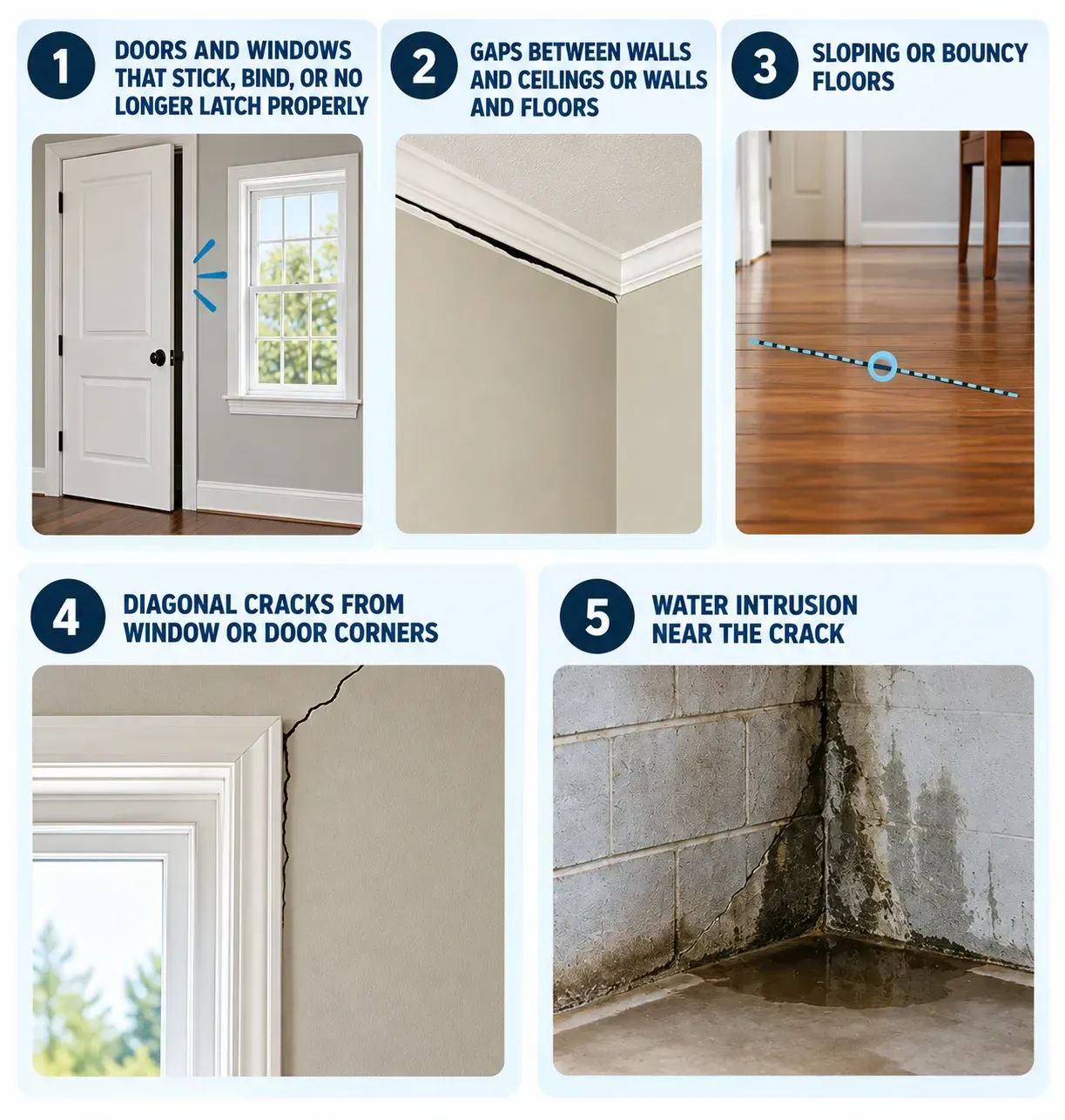

Warning Signs That Go Beyond the Crack Itself

A single crack evaluated in isolation misses the full picture. Structural foundation problems almost always show up in multiple places throughout the home. Look for these symptoms alongside any crack you find:

Doors and windows that stick, bind, or no longer latch properly. Foundation movement shifts door and window frames out of square. This shows up in the same seasonal pattern as heavy rains in Alabama's clay soil - worse in wet weather, slightly better in dry spells.

Gaps between walls and ceilings or walls and floors. Where structural members are separating, something beneath them has moved.

Sloping or bouncy floors. In Alabama homes on clay soil, floor movement - especially toward the center of the home - can indicate heaving from below.

Diagonal cracks spreading from window corners or door corners in interior drywall. Some surface cracking is normal. Cracks that are widening, spreading, or appearing in rooms that were previously crack-free are worth investigating.

Water intrusion near the crack. Any crack that allows water entry after rain is creating secondary damage from moisture, regardless of structural severity.

Two or more of these symptoms together - alongside a crack of any width- is a strong signal that a professional evaluation is needed.

The Right Response by Crack Type

Monitor it yourself: Hairline vertical cracks in poured concrete walls with no water entry and no companion symptoms. Mark the ends, check in 90 days.

Get a professional opinion: Any crack wider than 1/8 inch, any crack with water entry, any crack accompanied by doors sticking or floors sloping.

Call today: Horizontal cracks of any width, cracks with displacement, any crack that has visibly grown since you first noticed it.

H2O Waterproofing provides free foundation inspections throughout Alabama. A trained technician will document crack locations, measure widths, assess companion symptoms, and recommend whether monitoring, waterproofing, or structural stabilization is needed. There is no charge for the inspection and no obligation.

Call (205) 956-2426 to get your foundation checked before a small crack becomes a big repair.

Foundation Repair Options in Alabama

When a crack requires more than monitoring, the repair approach depends on the type and source of movement.

Crack injection: Epoxy or polyurethane foam injected into vertical and diagonal cracks to seal water entry and stabilize the crack against further movement. This does not address structural movement but prevents water infiltration and limits further deterioration.

Carbon fiber straps: Installed horizontally across bowing or horizontally cracked walls to arrest inward movement. Carbon fiber does not push the wall back to original position but stops further displacement.

Wall anchors: Steel anchors driven through the foundation wall and into the soil outside, connecting to buried anchor plates. Over time, anchors can be tightened to gradually restore wall position.

Piering and underpinning: For foundations with significant settlement, steel piers are driven below the unstable clay layer to bedrock or load-bearing soil, and the foundation is lifted and stabilized.

H2O Waterproofing documents the correct repair approach during the free inspection based on what is actually causing the movement, not a one-size approach.
